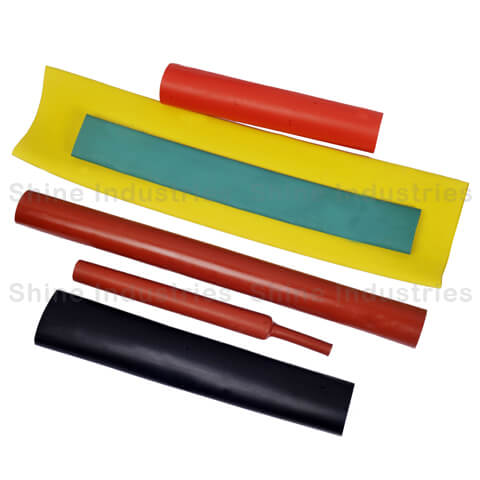

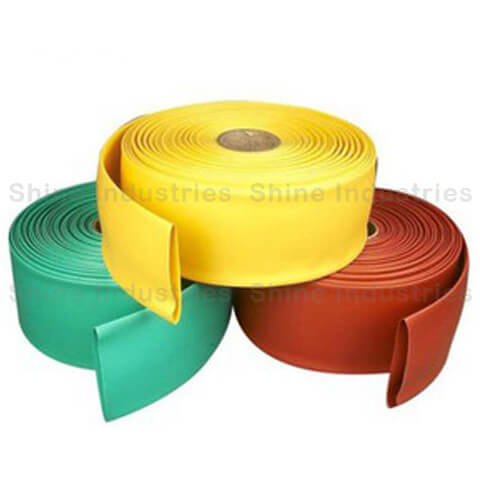

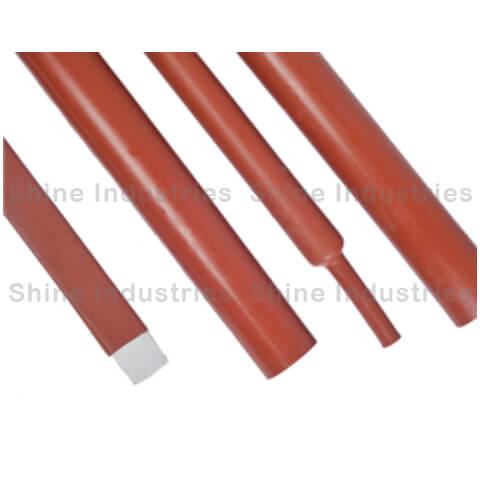

Heat Shrink Bus-Bar Sleeves
Heat Shrinkable Sleeves provide insulation enhancement to bus-bar systems up to 36kv and protect them against flashover and accidental induced discharge. The use of bus-bar tubing allows equipment designers the freedom to reduce air spacing between busbar, such as in manufacture of switchgear cabinets where space is at a premium.
Heat Shrinkable tubes are manufactured from high quality non-tracking, non-halogen, crosslinked based polymer which has excellent performance in high voltage environments & reduces the noxious and corrosive effects in fire situation.
We, at Shine Industries, are Designing, Developing, Manufacturing Company that Manufacture, Supply and Export of Top Best Quality Product Heat Shrink Bus-Bar Sleeves. We are Vadodara - Gujarat based Power Cable Accessories Manufacturer & Supplier in India and Exporter to all over the World.
|1||Tensile Strength||11 N/mm² (MPA) (Min.)||ASTM D 412-06a|
|2||Ultimate Elongation||450% (Min.)||ASTM D 412-06a|
|3||Longitudinal Change||-10% (Max.)||ASTM D2671|
|4||Density||1.15 ± 0.2 gm/cm³||ASTM D792|
|5||Hardness||60 ± 10 Shore D||ASTM D2240|
|6||Water Absorption||0.5% (Max.)||ASTM D570|
|7||Accelerated Ageing for 120°Cfor 400 Hrs|
|Tensile Strength||9 N/mm2 (Mpa) (Min.)||ASTM D 412-06a|
|Ultimate Elongation||300% (Min.)||ASTM D 412-06a|
|8||Heat Shock (250oC for 30 Mins.)||No Cracking or flowing||ESI 09-11|
|9||Shrink Temperature||125°C||IEC 216|
|10||Continuous Temperature Limit||-40°C to + 110°C||IEC 216|
|11||Dielectric Strength||23 KV/mm. (Min.)||ASTM D149|
|12||Volume Resistivity||7.7 x 1015 Ohm.cm||ASTM D257|
|13||Dielectric Constant||7.7 x 1015 Ohm.cm||ASTM D150|
